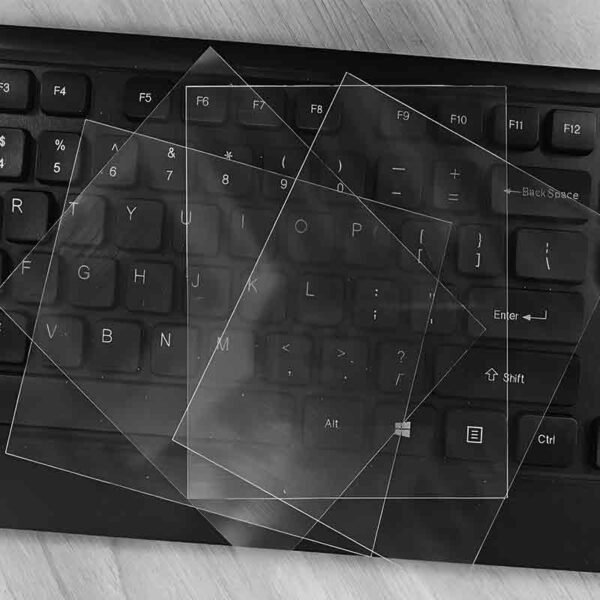

TM330 High Transmittance Epoxy Boards

1. Features

1.1 High transmittance Laminate, of over 91%, close to that of glass;

1.2 Haze value is below 2.5% at most;

1.3 It has the characteristics of high stiffness, good toughness, and high insulation like glass fiber board;

1.4 Through special surface treatment, the surface hardness is above 3H, and the wear resistance can be comparable to glass.

2. Laminate properties

Item		Unit or Condition		Standards		Typ.Value
Density		g/cm3		1.85± 0.1		1.85
Transmittance		%		>88		90.8
Moisture Absorption		%		<0.5		0.09
Dk\Df		@ 1 MHZ		≤5.4		4.7
		@ 1 MHZ		≤0.035		0.016
Halogen		ppm	Cl	<900		438
			Br	<900		0
Flexural Strength		N/mm 2	Longitude	≥415		421
			Latitude	≥325		334
Flexural Modulus		Gpa	Longitude	≥20		21
			Latitude	≥20		20
Tensile  Strength		N/mm 2	Longitude	≥250		331
			Latitude	≥200		263
Tensile Modulus		Gpa	Longitude	≥15		19
			Latitude	≥15		18

3. Application

Photovoltaic Glass, Mobile Phone Batery Cover
