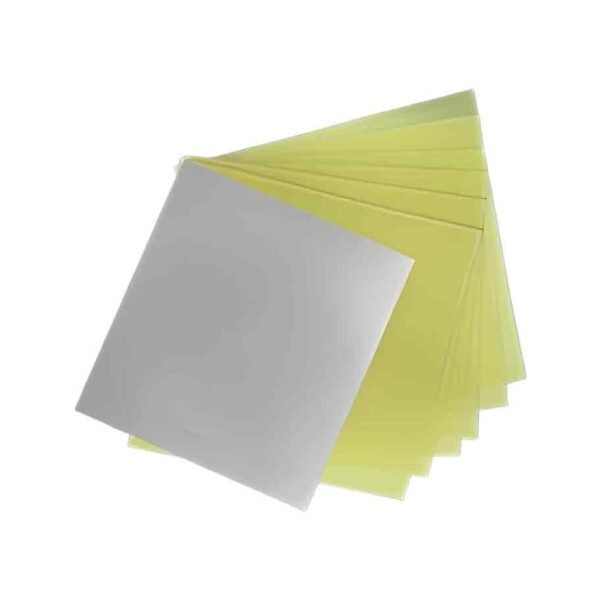

G75X Fast Curing Prepreg/PP Boards

1.Features

1.1 Low material molding temperature, high efficiency;

1.2 High flame retardant grade of materials, passing the needle flame test;

1.3 Capable of forming high-difficulty structures such as tail bones and bosses.

2.Parameters

Item	Unit or Condition		Standards		Typ.Value
Density	g/cm3		1.85± 0. 1		1.85
Moisture Absorption	%		<0.5		0.09
Flammability	Flame Test		pass		pass
Dk\Df	@ 1 MHZ		≤5.4		4.7
	@ 1 MHZ		≤0.035		0.016
Halogen	ppm	Cl	<900		438
		Br	<900		0
Flexural  Strength	N / mm 2	Longitude	≥415		421
		Latitude	≥325		334
Flexural Modulus	Gpa	Longitude	≥20		24
		Latitude	≥20		23
Tensile   Strength	N / mm 2	Longitude	≥250		331
		Latitude	≥200		263
Tensile Modulus	Gpa	Longitude	≥15		19
		Latitude	≥15		18

3. Application

Mobile Phone Battery Cover
